DONGYANG INDUSTRIAL MACHINES

Dongyang Industrial Machinery established in 1985 has been developing in manufacture of various roof-tile forming machines and Roll Forming Lines, among other equipment.

Specialized in steel roofing tile making machines, no other company is comparable in steel roofing tile roll forming machine.

PRODUCT:

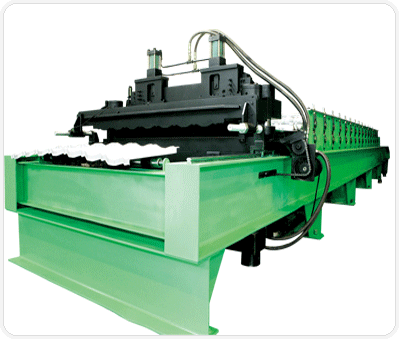

ROOF TILE FORMING MACHINE (SHINGLE TYPEL)

Length : 11.8m(except run out table and uncoiler)

Width : 2m

Voltage : 220V/380V(3phase) 50hz/60hz

Coil thickness : 0.4~0.6mm

Coil Width : 914~1380mm

Speed : Drawing depth : 15mm-20~24tiles/minute

Drawing depth : 25mm-16~20tiles/minute

(except cutting time)

Drawing depth : 25mm/Pitch 370mm-

6shingle/minute

Adjustable pitch range : 250~400mm

Drawing height : 15~25mm

Drawing method : by hydraulic(Flying type)

ROOF TILE FORMING MACHINE (STEP TYPE)

Length : 10m(except run out table and uncoiler)

Width : 1.5m

Voltage : 220V/380V(3phase) 50hz/60hz

Coil thickness : 0.4~0.6mm

Coil Width : 914~1219mm

Speed : Drawing depth : 15mm-20~24tiles/minute

Drawing depth : 25mm-16~20tiles/minute

(except cutting time)



Adjustable pitch range : 250~300mm

Drawing height : 15~25mm

Drawing method : by hydraulic(Flying type)

STANDING SEAM FORMING MACHINE

Length : 7m(except run out table and uncoiler)

Width : 1m

Voltage : 220V/380V(3phase) 50hz/60hz

Coil thickness : 0.6mm

Coil Width : 520mm

Speed : 12m/min (except cutting time)

Cutting method : by geard motor

DOWNSPOUT DRAINAGE PIPE FORMING MACHINEWITH ELBOW MACHINE

Length : 10m(except run out table and uncoiler)

Width : 0.9m

Voltage : 220V/80V(3phase) 50hz/60hz

Coil thickness : 0.5mm

Coil Width : 300mm

Speed : 12m/min (except cutting time)

Cutting method : by Hydraulic

Drawing method : by Hydraulic

Length : 1m

Width : 1m

Voltage : 220V/380V(3phase) 50hz/60hz

STEEL SIDING FORMING MACHINE

Length : 7.9m(except run out table and uncoiler)

Width : 1m

Voltage : 220V/380V(3phase) 50hz/60hz

Coil thickness : 0.5mm

Coil Width : 300mm

Speed : 12m/min (except cutting time)

Cutting method : by greard mo

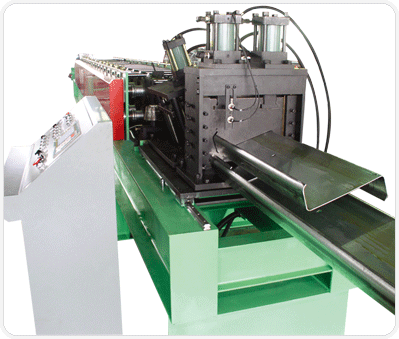

PURLIN FORMING LINE

Speed : 32m/min (except cutting & punching time)

Cutting method : by Hydraulic

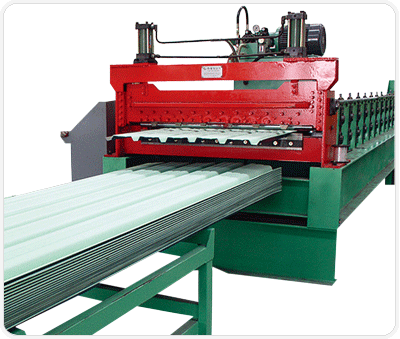

PANEL FORMING LINE

Speed : 11.8m/min (except run out table and uncoile)

Width : 1.8m

Voltage : 220V/380V(3phase)50hz/60hz

Coil thickness : 0.4mm~1.2mm

Coil Width : 914~1219mm

Speed : Controlled by the frequency of inverter

16m/min(except cutting time)

Drawing method : by hydraulic(Flying type)

ELECTRIC HEATER TO ATTACH POLYETHYLENE FOAM

Length : 6.5m(uncoiler)

Width : 3.5m

Voltage : 220V/380V(3phase) 50hz/60hz

Foam thickness : 3~8mm

Speed : Controlled by the frequency of inverter

 8m/min(except cutting time)
